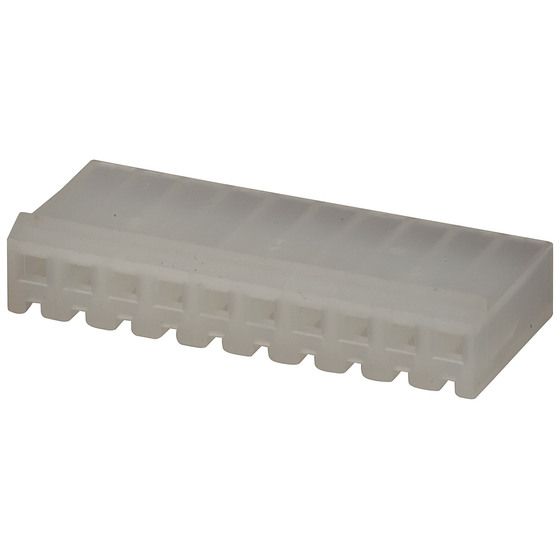

10 PIN 0.156IN HEADER WITH CRIMP PINS - 3.96MM PITCH
Code: 8018543 Brand: JAYCAR
Your SMPS output connector's gone, or you're wiring a run and need a 10-pin header that won't pull loose under load. This 0.156in (3.96mm pitch) header with crimp pins is rated 250V at 7A AC/DC — the spec you'll find on switchmode power supply outputs. Stack them end-to-end if you need a longer run. Nylon housing, UL 94V-2 rated, handles -40°C to 105°C. Crimp pins hold at 2.85kg pull-out force, so they're not walking off mid-run. 25 mating cycles before you swap it out. In stock.
