10A PANEL MOUNT THERMAL CIRCUIT BREAKER (CBE)
Code: 8227166

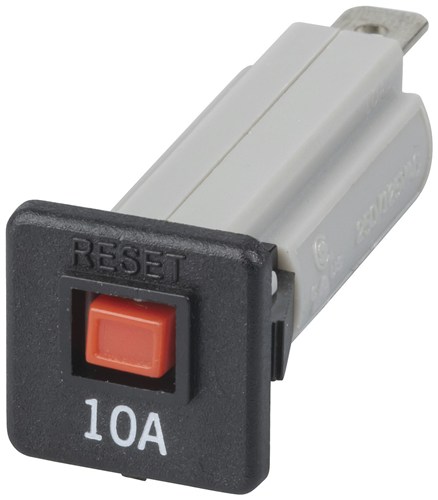

- The SF2300 is a panel mount, manual resetting thermal circuit breaker designed for connection via spade terminals, with a 10-amp rating. This unit features a sleek black 19mm square facade and a centrally located bright red trip button. Upon tripping, the red button extends, and resetting is achieved by simply pressing the button back in after the fault is cleared. Its slow response time is ideal for managing inductive and reactive loads, compliant with IEC 934 TYPE R/TO standards.
Key Features:
- Hold Current: Sustains 100% load indefinitely
- Trip Current: Activates within 1 hour at 135% load and within 1 minute at 200% load
- Contact Resistance: 0.16 ohms
This product is optimized for applications requiring reliable circuit protection and is suitable for various industrial and commercial settings.
Please note: Prices are shown including GST (where applicable) and are in AUD$
