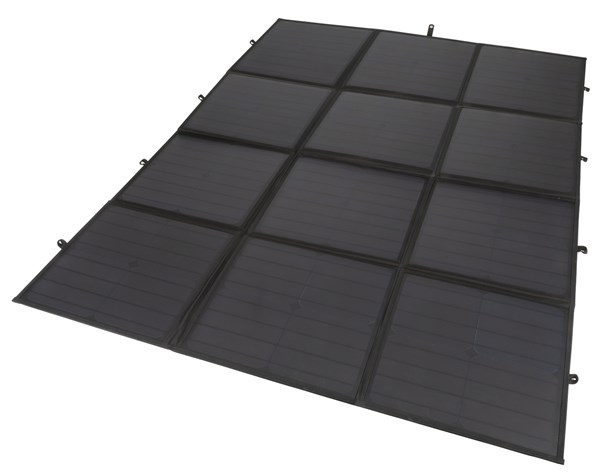

12V 400W BLANKET SOLAR PANEL WITH ACCESSORIES
Code: 8229025
- The ZM9126 12V 400W solar panel is a lightweight and compact solution, weighing only 10.5kg and folding down to 572 x 360mm for convenient storage. This blanket solar panel is more space-efficient than traditional fold-up models. For use, simply unfold and position it on the ground or across a vehicle's windscreen, then connect the pre-fitted 5-meter Anderson lead to your battery system using the supplied connectors. The included charge controller allows direct connection to GEL, flooded, SLA, or Li-ion batteries without additional hardware. It features a USB-A port with Quick Charge 3.0 and a USB-C port with Power Delivery for fast charging of mobile devices. Constructed with high-grade monocrystalline solar panels, it includes safety features such as short circuit, open circuit, reverse polarity, overload, and dual MOSFET reverse current protection. A carry bag with an accessory storage pouch is provided.
**Solar Panel Specifications:**
- Nominal Voltage: 12V
- Maximum Output: 22.6V @ 17.6A (400W)
**Charge Controller Specifications:**
- System Voltage: 12/24V (designed for 12V systems)
- Float Charge: 13.7V (default, adjustable)
- USB-A QC3.0 port
- USB-C PD60W port
- Self-Consumption: <10mA
- Operating Temperature: -35 to 60°C
