25W LED PSU 180-295VAC 24-36VDC/0.7A DIM

Code: 8223045

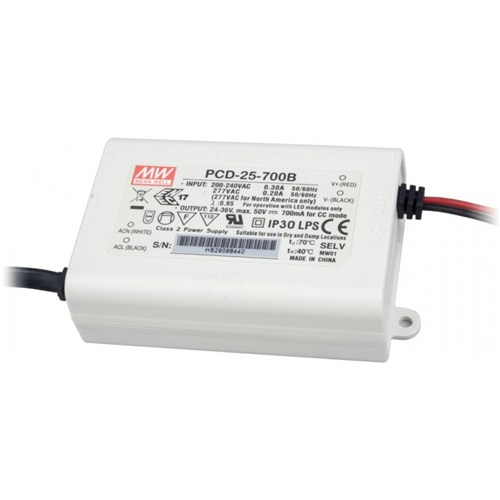

  • 25W LED Power Supply, Model DIMPCD-25-700BSO by Meanwell, Product Code: 401462

    **Key Features:**
    - AC Phase-Cut Dimming Compatibility
    - Compatible with Leading and Trailing Edge Triac Dimmers
    - Constant Current Design
    - Short Circuit and Over-Temperature Protection
    - Free Air Convection Cooling
    - Fully Isolated Plastic Enclosure
    - IP42 Rated Design
    - 100% Full Load Burn-in Test
    - 3-Year Warranty

    **Technical Specifications:**
    - Rated Current: 700mA
    - Operating Voltage: 24-36VDC
    - Current Accuracy: ±5%
    - Ripple: 2.7V peak-to-peak
    - No-Load Output Voltage: 50VDC
    - Efficiency: 81%
    - AC Current: 0.3A at 230VAC
    - Operating Temperature Range: -30°C to 60°C

$35.93

EACH
