3A PANEL MOUNT THERMAL CIRCUIT BREAKER (CBE)
Code: 8227163

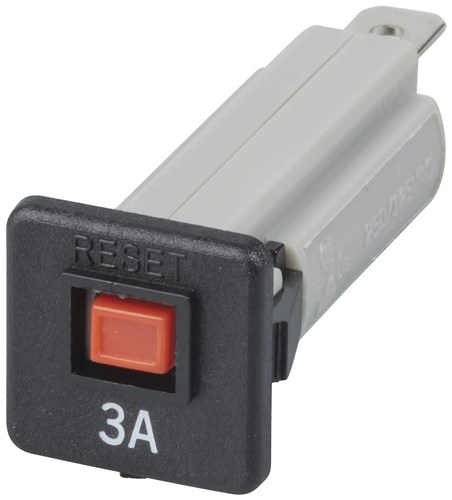

- Panel mount manual resetting thermal circuit breaker, compatible with spade terminals, rated at 3 amps. Model SF2293 features a sleek black 19mm square design with a centrally located bright red trip button. Upon tripping, the red button extends and can be reset by pressing it back in after the fault is cleared. Its slow response time is ideal for managing inductive and reactive loads, compliant with IEC 934 TYPE R/TO standards.
Key Features:
- Hold Current: Sustains 100% load indefinitely
- Trip Current: Activates within 1 hour at 135% load and within 1 minute at 200% load
- Contact Resistance: 0.16 ohms
Please note: Prices are shown including GST (where applicable) and are in AUD$
