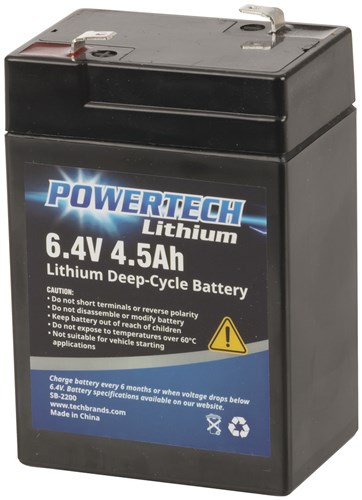

6.4V 4.5AH LITHIUM DEEP CYCLE BATTERY
Code: 8205570
- These LiFePO4 batteries, while similar in size to Lead Acid batteries, are significantly lighter.
**SB2200**
- **Warranty:** 3 Years
- **Hazardous Materials**
The LiFePO4 batteries represent the next generation of power storage. Although they resemble lead acid batteries externally, they are fundamentally different, utilizing 18650 LiFePO4 cells commonly used in portable devices. An integrated Battery Management System (BMS) ensures uniform charging and discharging, offering protection against short circuits, overcurrent, and reverse polarity. This system provides superior safety compared to traditional lead acid batteries, which are prone to rapid discharge and potential fire hazards. The BMS also regulates discharge and cut-off voltage to safeguard the internal cells.
This 5Ah model delivers continuous current up to 4.5A, with peak currents reaching 9A, making it ideal for portable power applications and as a replacement for similar capacity lead acid/AGM batteries. It is frequently used in alarm systems and other critical systems requiring backup power.
**Features:**
- Significantly lighter than Lead Acid and AGM Batteries
- Durable LiFePO4 Cells
- Extended lifespan
**Specifications:**
- Service Life: Over 10 years
- Cycle Life: Over 1500 cycles (maintaining >80% capacity)
- Cut-Off Voltage: Approximately 5.0V
- Charge Type: Constant Current/Constant Voltage
- Discharge Current: 4.5A
- Maximum Continuous Current: 9A (for 5 seconds)
- Internal Cells: 18650 LiFePO4
- Maximum Internal Resistance: 55m?
- Operating Temperature: 0-45°C (60°C max discharging)
- Operating Humidity: RH < 85%
- Storage Temperature: 0-40°C (15-25°C recommended)
- Storage Humidity: RH < 50%
