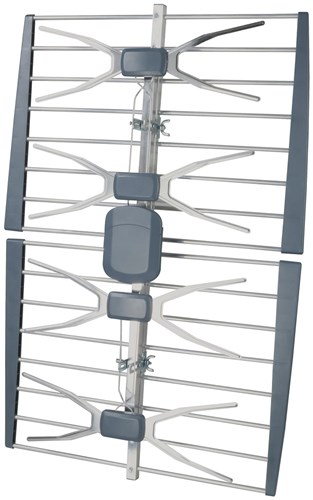

ANTENNA TV UHF PHASED ARRAY KINGRAY

Code: 8204073
Stock Status: In Stock
  • The LT3154 is a robust UHF phased array antenna designed for challenging digital reception environments. It is particularly effective in areas lacking direct line of sight to the transmitter or experiencing multipath issues from reflected signals. The antenna can receive both horizontal and vertical signals by adjusting the orientation of its durable mounting bracket and U-bolt assembly. Additionally, it features an LTE filter to safeguard against 4G/LTE telephone interference.

    **Specifications:**
    - Gain: 12.5dB
    - Wind Load: 78N
    - Frequency Range: 519-694 MHz
    - Horizontal Beamwidth: +/-25 degrees
    - Weight: 1.65 Kg
    - Channel Range: 27-51
    - Vertical Beamwidth: +/-20 degrees
    - Dimensions: 815 x 545 mm
    - F Connector: Yes
    - Front to Back Ratio: 22dB
    - Number of Elements: 4
    - Impedance: 75 Ohm

    This product comes with a 1-year warranty.

$109.00

EACH

Add
Please note: Prices are shown including GST (where applicable) and are in AUD$
