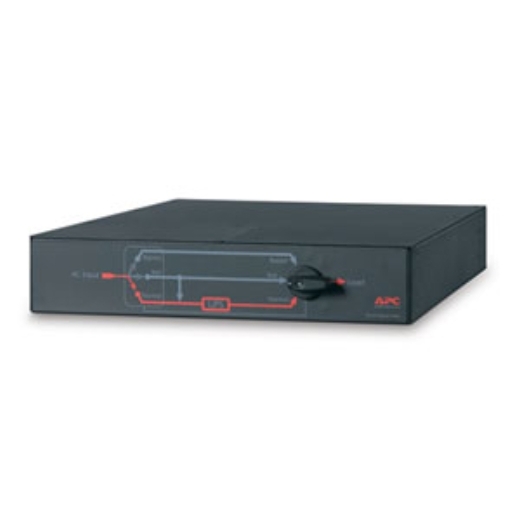

APC SERVICE BYPASS PANEL- 230V; 50A; MBB; IEC320 C20/HW INPUT; IEC-320 OUTPUT- (2) C19 (8) C13
Code: 8549200 OEM Code: SBP5000RMI2U Brand: APC
Small server closet. One UPS. You need to swap a battery pack or run a firmware update without killing the eight switches and two high-draw drives plugged into the back.
This APC 2U bypass panel does exactly that. Input takes an IEC 60320 C20 plug or a hard-wire 3-wire (1P + N + E) connection at 230 V, 50/60 Hz. Output side: eight C13 outlets plus two C19 outlets, all fed through a 32 A circuit breaker.
7 680 VA load capacity, 99 % efficiency, power factor 0–1. CSA and GOST certified. Meets EN/IEC 62040-1:2019/A11:2021 and EN/IEC 62040-2:2018. Operating range –20 to 50 °C, 0–95 % RH.
Rack-mount brackets (both rack and wall) are in the box alongside the hardwire panel and user manual. Two U of space, no wasted depth.
If your next UPS service is booked and you'd rather not go dark, this is the clean path around the inverter.
Add to cart and we'll stage it for dispatch from our warehouse.
