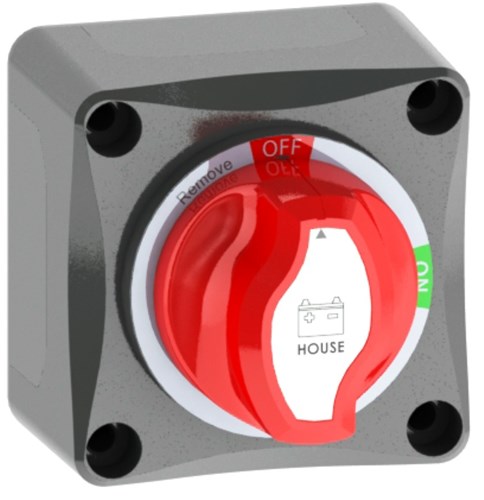

BATT ISOLATOR SWITCH 2POS 275A W/AFD
Code: 8205748
- The SF2249 switch is engineered for durability and high output, featuring a 1-year warranty. It includes removable windows on all four sides to accommodate various cabling configurations. The Alternator Field Disconnect (AFD) safeguards your alternator during battery transitions by maintaining a load on the alternator, thus protecting the regulation circuitry.
Available Models:
- SF-2249: 275A Battery - On/Off
- SF-2250: 200A Dual Battery - 1/2/Both/Off
Key Features:
- High rated current capacity
- Alternator protection
- Flexible cable entry options
Specifications:
- Maximum Rated Voltage: 48VDC
- Continuous Current: 275A
- Surge Current (5 min): 455A
- Cranking Current (10 sec): 1250A
