C/B 100A 12-14VDC
Code: 8205757

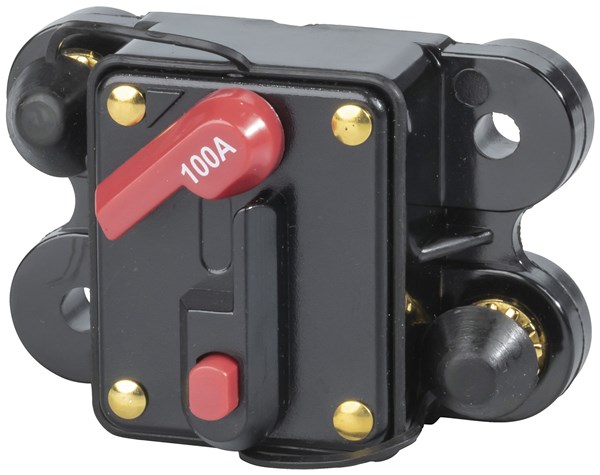

- The SF2266 is a robust, multi-purpose panel mount circuit breaker designed for both AC and DC circuits, rated at 100 amps. Constructed from black electrical-grade bakelite, this reliable device allows for easy resetting, eliminating the need for costly fuse replacements. It features a lower voltage drop compared to traditional fuses and can function as a circuit isolation switch. This breaker is particularly suitable for car audio installations, operating at 12-14VDC.
Key Specifications:
- Rated at 100A for 12/14VDC and 12/24VDC applications
- Compatible with 12/24V systems
- Trips at 110A or immediately under short circuit conditions
- Equipped with 5mm diameter gold-plated terminals, including a captive shakeproof washer and support for up to 1/4" mounting bolts
- Includes protective rubber caps for terminals
- Features a test button on top for use as a switch, with circuit restoration via a simple lever action
This circuit breaker is engineered for durability and efficiency, making it an ideal choice for various electrical applications.
