MODULE - CNVRTR VOLTAGE DC-DC STP DN
Code: 8194723

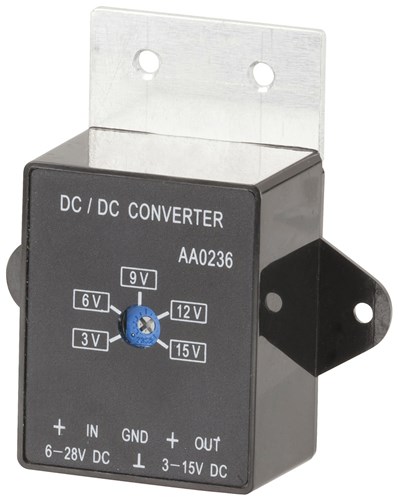

- The Digitech DC Voltage Converter Module efficiently steps down voltages, enabling device operation with varying power sources. Model AA0236 is pre-assembled, offering cost and time savings in a compact, reliable form. It is easy to connect and configure, suitable for powering 12VDC devices from a 6VDC motorbike battery or a 24VDC truck battery. The units include short-circuit, overload, and overheating protection, with automatic shutdown in overheating scenarios. All models are compact and feature mounting holes. Visit our website for datasheets.
Available Models:
1. DC to DC Step Down Voltage Converter Module
- Input Voltage: 6-28V DC
- Output Voltage: 3-15V DC
- Max Output Current: 1.5A
- Dimensions: 60(L) x 45(W) x 20(D)mm
- Model: AA-0236
2. DC to DC Step Up Voltage Converter Module
- Input Voltage: 6-14V DC
- Output Voltage: 11-26V DC
- Max Output Current: 2A
- Dimensions: 70(L) x 60(W) x 23(D)mm
- Model: AA-0237
3. 24VDC to 12VDC Step Down Voltage Converter Module (Non-user Selectable)
- Input Voltage: 24V DC
- Output Voltage: 12V DC
- Max Output Current: 1.1A
- Dimensions: 70(L) x 60(W) x 23(D)mm
- Model: AA-0237
