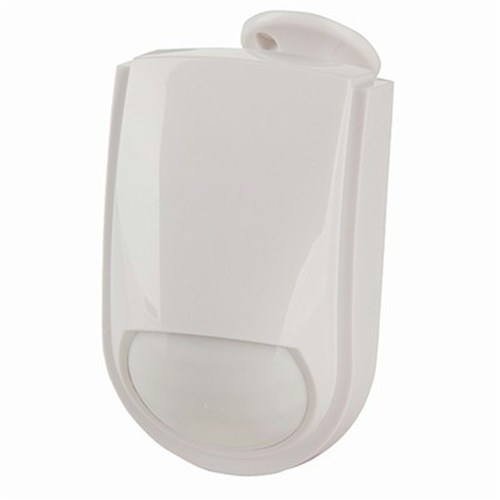

PIR PULSE QUAD ELEMENT TEMP COMP NC 12V
Code: 8204007
- Introducing the LA5046, a high-performance dual and quad element PIR detector designed for both residential and commercial security applications. These units are compact, aesthetically pleasing, and straightforward to install, featuring advanced capabilities. Equipped with automatic temperature compensation, they minimize false alarms in various environments. The detectors utilize 110-degree convex honeycomb hemispherical infrared lenses and maintain a low current draw of 8mA. Both models include a swivel bracket for easy positioning, with the quad unit providing superior detection capabilities compared to the dual element model.
Key Features:
- Operating Voltage: 9-15VDC
- Current Draw: 8mA nominal at 12VDC
- Detection Type: Dual element low noise pyroelectric sensor
- Range: Up to 12 meters
- Field of View: Maximum 110 degrees
- Mounting Height: 1.5m to 2.4m
- LED Indicator: Walk test enabled via internal link
- Alarm Output: NC, 28VDC 0.1A with cover on
- Tamper Switch
- Warm-Up Period: 90 seconds
- Pulse Count: Selectable 1, 2, and 4 pulses
The LA5046 comes with a 1-year warranty, ensuring reliability and peace of mind for your security needs.
Please note: Prices are shown including GST (where applicable) and are in AUD$
